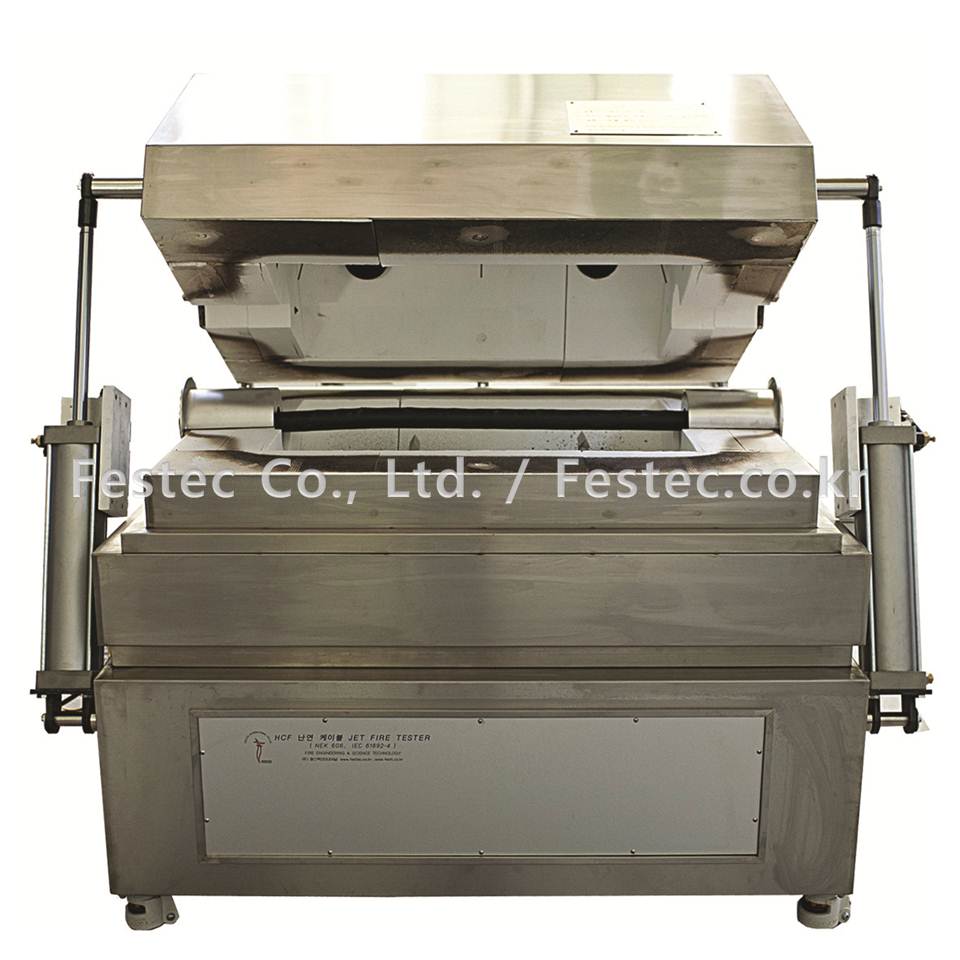

Offshore HCF Cable Fire Resistance Tester, NEK-931, NEK 606
HCF-NEK606 is an equipment that can decide whether power lines or control lines used in the coast, ships and refineries are resistant to high heat that may be caused by oil or gas.
• NEK 606 : Cable for offshore installations halogen-free and/or mud resistant
• IEC 60092-350 : Electrical installations in ships – Part 350: Low-voltage shipboard power cables. (General construction and test requirements)
• IEC 60092-351 : Electrical installations in ships – Part 351: Insulating materials for shipboard power cables
• IEC 60092-352 : Electrical installations in ships – Part 352: Choice and installation of electric cables for low voltage power systems
• IEC 60092-353 : Electrical installations in ships – Part 353: Single and multi-core cables with extruded solid insulation for rated voltages 0.6/1 and 1.8/3kV
• IEC 60092-354 : Electrical installations in ships – Part 354: Single and three-core power cables with extruded solid insulation for rated voltages 6kV up to 30kV
• IEC 60092-359 : Electrical installations in ships – Part 359: Sheathing materials for shipboard power and telecommunication cables
• IEC 60092-376 (2003-05) : Electrical installations in ships – Part 376: 150/250 V cables for control and instrumentation Circuits
• IEC 60228 : Conductors of insulated cables
• IEC 60331-11/21/25 : Fire resisting characteristics of electrical cables
• Test Chamber Assembly
- Chamber Dimension : 1,220(W) x 1,045(D) x 1,100(H) mm
; Heat Insulation : Cerakwool 50t, Heat Flux 0.239W/mK(at 850℃)
- Frame Dimension : 1,300(W) x 1,125(D) x 950(H) mm
; Square Pipe : 50 x 50 x t3 mm
- Material : Stainless Steel 304
- Chamber Open : Air Cylinder - Stroke 300mm, Rod 40mm
• Jet Burner Assembly
- Material : Stainless Steel 304, t2
- Burner Size : Stainless Steel 304, ID Ø36mm
- Venturi Mixer : Air & Propane Mixing
• Mass Flow Controller(MFC)
- Gas : Air (77.7±4.8 L/min)
- Flow Rate : 180 SLPM
• Mass Flow Controller(MFC)
- Gas : Propane(C3H8)
- Flow Rate : 15 SLPM (13.5±0.5 L/min)
• Thermocouple for Jet Fire Temperature
- K-Type Thermocouple(φ8.0 mm) for Measuring chamber temp'
- R-Type Thermocouple(φ8.0 mm)
• Control Rack and electrical work
- Dimension : 730(W) x 650(D) x 1,600(H)
- Material : Aluminum Alloy For Die castings Steel Cover
• DAQ System – A device to send the collected data to the PC - Blue Tooth: Consists of a pair of antenna
Specification
Size
1,000 (w) × 800 (D) × 3,750 (H)
Power
220 V AC, 60 Hz, 10 A
Weight
150 kg
Utilities
Auto Moving System, Heat Flux meter, Water Cooling System
• Using the DAQ System, the MFC(Mass Flow Controller) & Inverter is controlled to match the air and gas supplied into the burner with the standard temperature curve.
• The burner’s On/Off and the open/close control is controllable at the Cover.
• Considered the safety and convenience of the user for the Auto Ignition system.
After the rise in temperature is complete, check the current of the wire and check whether there has been any melting of the cover causing short circuit
